Χαρακτηριστικά

Προδιαγραφές

Rated Voltage: 12v/24v

Model Number: DC

Application: Air Blower

Power Source: Electric Blower

Item name: mini air blower

Colour: Black,option

Βασικές πληροφορίες

Model Number: DC

Πληρωμής & Αποστολής Όροι

Packaging Details: air blower Export standard carton/poly bag/inner colour box/main carton...

Supply Ability: 100000 Piece/Pieces per Month air blower

Περιγραφή προϊόντων

Product Description

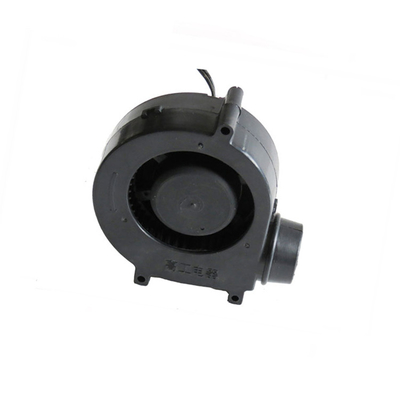

1. The Product Specification of Industrial blower fan

DC series BBQ and Cartoon blower is well designed for Small size, high quality, long life, low noise,

rich air flow, many types, beautiful appearance. lt is divide into two types by the housing of material;

plastic housing type and film steel housing type. The blower power can be easyly provided by battery,

hand lamp, vechicle, boat, 220V DC by small mains transformer, etc., It is widely used for BBQ and inflatable Cartoon,

AD clothing,vechicle and boat blowing, cooling for temperature control and ventilation, small stove, etc.,

Type	Max Power (W)	Calibre outlet (mm)	Max flow (CFM)	Meas (mm)	Weight (kg)	Voltage (V)	Rotational Speed (RPM)	Motor type	Power Cord (hour)	Noise dB(A)
DC-P-R Plastic round outlet	5W	25	16	75×75×32	0.102	1.5V 3V 6V 12V 24V 36V 110V 220V	2200 2600 3000 36000	brushless motor sleeve or ball bearing	at25 deg 10000-50000	30.28-48.20
	10W	25	21	85×85×32	0.148
	12W	32	27	95×95×32	0.180
	15W	32	33	120×120×32	0.280
DC-P-S Plastic Square outlet	5W	38×30	16	75×75×30	0.102
	10W	42×32	21	95×95×32	0.148
	12W	50×33	27	97×97×33	0.180
	14W	60×32	33	120×120×32	0.280
	16W	65×38	38	120×120×38	0.30
DC-S-R film steel round outlet	10W	28	18	100×100×85	0.45			brush or brushless motor sleeve or ball bearing	at25 deg 1000-5000	30.28-65.4
	15W	32	28	120×1201×95	0.51
	30W	33	35	153×172×120	0.85
	40W	35	38	158×177×120	1.03
	60W	40	45	175×200×135	1.30
	80W	43	50	190×208×135	1.50
	100W	45	68	210×230×170	1.67
	120W	47	90	225×250×170	1.75
	150W	50	95	245×267×170	2.70
